keepalived实现Nginx双机高可用

Keepalived 是一个基于VRRP协议来实现的LVS服务高可用方案,可以利用其来避免单点故障。一个LVS服务至少会有2台服务器运行Keepalived,一台为主服务器(MASTER),一台为备份服务器(BACKUP),但是对外表现为一个虚拟IP,主服务器会发送特定的消息给备份服务器,当备份服务器收不到这个消息的时候,即主服务器宕机的时候, 备份服务器就会接管虚拟IP,继续提供服务,从而保证服务的高可用性。

keepalived的工作原理

KeepalivedVRRP 的完美实现,因此在介绍 keepalived 之前,先介绍一下 VRRP 的原理。

VRRP 简介

VRRP(Virtual Router Redundancy Protocol)虚拟路由冗余协议,在 VRRP 中有两组重要的概念:

  • VRRP 路由器 和 虚拟路由器,

    • VRRP路由器 是指运行VRRP的路由器,是物理实体,
    • 虚拟路由器是指VRRP协议创建的,是逻辑概念。

    一组VRRP路由器协同工作,共同构成一台虚拟路由器。

  • 主控路由器 和 备份路由器。

    VRRP 中存在着一种选举机制,用以选出提供服务的路由即主控路由,其他的则成了备份路由。当主控路由失效后,备份路由中会重新选举出一个主控路由,来继续工作,来保障不间断服务。

在现实的网络环境中,两台需要通信的主机大多数情况下并没有直接的物理连接。对于这样的情况,通常的解决方法有以下两种:

  • 在主机上使用动态路由协议(RIP、OSPF等)
  • 在主机上配置静态路由

很明显,在主机上配置动态路由是非常不切实际的,因为管理、维护成本以及是否支持等诸多问题。配置静态路由就变得十分流行,但路由器(或者说默认网关default gateway)却经常成为单点故障。VRRP的目的就是为了解决静态路由单点故障问题,VRRP通过一竞选(election)协议来动态的将路由任务交给LAN中虚拟路由器中的某台VRRP路由器。

VRRP 工作流程

(1).初始化:

路由器启动时,如果路由器的优先级是255(最高优先级,路由器拥有路由器地址),要发送VRRP通告信息,并发送广播ARP信息通告路由器IP地址对应的MAC地址为路由虚拟MAC,设置通告信息定时器准备定时发送VRRP通告信息,转为MASTER状态;否则进入BACKUP状态,设置定时器检查定时检查是否收到MASTER的通告信息。

(2).Master

  • 设置定时通告定时器;
  • VRRP 虚拟MAC地址响应路由器IP地址的ARP请求;
  • 转发目的MACVRRP虚拟MAC的数据包;
  • 如果是虚拟路由器IP的拥有者,将接受目的地址是虚拟路由器IP的数据包,否则丢弃;
  • 当收到shutdown的事件时删除定时通告定时器,发送优先权级为0的通告包,转初始化状态;
  • 如果定时通告定时器超时时,发送VRRP通告信息;
  • 收到VRRP通告信息时,如果优先权为0,发送VRRP通告信息;否则判断数据的优先级是否高于本机,或相等而且实际IP地址大于本地实际IP,设置定时通告定时器,复位主机超时定时器,转BACKUP状态;否则的话,丢弃该通告包;

(3).Backup

  • 设置主机超时定时器;
  • 不能响应针对虚拟路由器IPARP请求信息;
  • 丢弃所有目的MAC地址是虚拟路由器MAC地址的数据包;
  • 不接受目的是虚拟路由器IP的所有数据包;
  • 当收到shutdown的事件时删除主机超时定时器,转初始化状态;
  • 主机超时定时器超时的时候,发送VRRP通告信息,广播ARP地址信息,转MASTER状态;
  • 收到VRRP通告信息时,如果优先权为0,表示进入MASTER选举;否则判断数据的优先级是否高于本机,如果高的话承认MASTER有效,复位主机超时定时器;否则的话,丢弃该通告包;

ARP查询处理

ARP(Address Resolution Protocol),即地址解析协议。是根据IP地址获取物理地址的一个TCP/IP协议。主机发送信息时将包含目标IP地址的ARP请求广播到网络上的所有主机,并接收返回消息,以此确定目标的物理地址.

所以当内部主机通过ARP查询虚拟路由器IP地址对应的MAC地址时,MASTER路由器回复的MAC地址为虚拟的VRRPMAC地址,而不是实际网卡的 MAC地址,这样在路由器切换时让内网机器觉察不到;

而在路由器重新启动时,也不能主动发送本机网卡的实际MAC地址。如果虚拟路由器开启的ARP代理 (proxy_arp)功能,代理的ARP回应也回应VRRP虚拟MAC地址;

示例

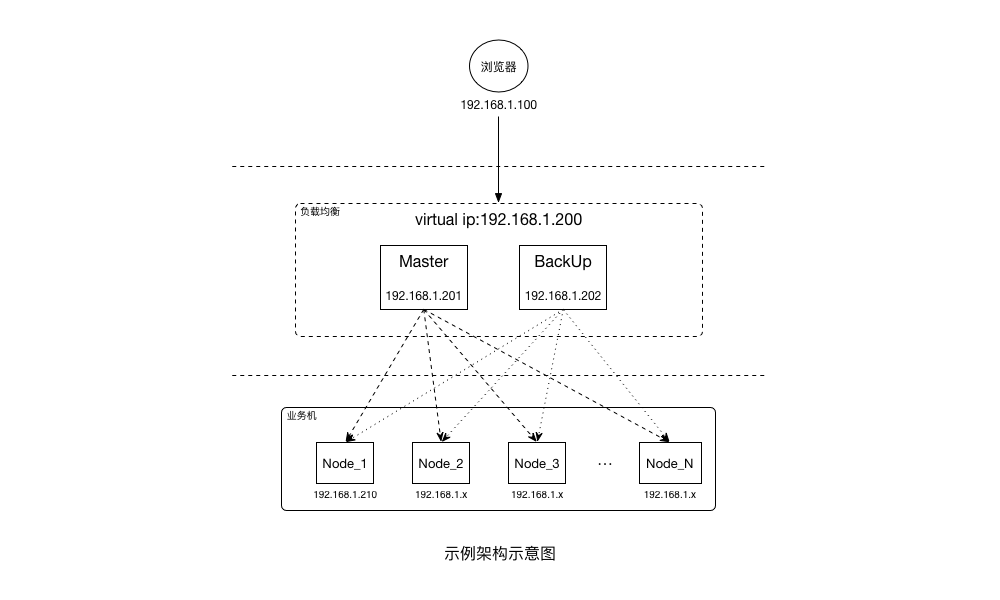

示例架构示意图

  • MasterBackUp 两台服务器作为负载均衡器,BackUpMaster 的热备份。
  • Node_x 作为我们的业务机

准备:

  • CentOS 6.8 X86_64
  • keepalivedipvsadm,实现 MasterBackUp 双机高可用。
  • Nginx,在 MasterBackUp 上作为 7层负载均衡器,在 Node_x 节点作为 web 服务器来使用。

安装

  • 1、同步各服务器的时间:

    1
    ntpdate 202.120.2.101
  • 2、网络设置

    • Master:192.168.1.201
    • BackUp:192.168.1.202
    • Node_1:192.168.1.210
  • 3、安装 Nginx

分别在 MasterBackUpNode_1节点上安装 Nginx

先安装nginxyum

1
rpm -ivh http://nginx.org/packages/centos/6/noarch/RPMS/nginx-release-centos-6-0.el6.ngx.noarch.rpm

查看:

1
yum info nginx

安装:

1
yum install nginx

  • 4、安装 keepalived

分别在 MasterBackUp 上安装 keepalived

1
yum install -y keepalived

配置

  • MasterBackUp 节点上 Nginx 配置(负载均衡):
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    cat /etc/nginx/conf.d/default.conf
    upstream app {
    server 192.168.1.210:80;
    # server 192.168.1.xxx:80;
    }
    server {
    listen 80;
    server_name localhost;

    location / {
    proxy_pass http://app;
    }
    }

MasterBackUp 节点上分别启动

1
service nginx start

  • Node_1 节点上 Nginx 配置(web服务器):
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    cat /etc/nginx/conf.d/default.conf
    server {
    listen 80;
    server_name localhost;

    location / {
    root /usr/share/nginx/html;
    index index.html index.htm;
    }
    }

启动 Nginx

1
service nginx start

  • Master 节点 keepalived 配置

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    cat /etc/keepalived/keepalived.conf
    global_defs {
    router_id NodeA
    }
    vrrp_instance VI_1 {
    state MASTER #设置为主服务器
    interface eth0 #监测网络接口
    virtual_router_id 51 #主、备必须一样
    priority 100 #(主、备机取不同的优先级,主机值较大,备份机值较小,值越大优先级越高)
    advert_int 1 #VRRP Multicast广播周期秒数
    authentication {
    auth_type PASS #VRRP认证方式,主备必须一致
    auth_pass 1111 #(密码)

    virtual_ipaddress {
    192.168.1.200/24 #VRRP HA虚拟地址
    }
    }
  • BackUp 节点 keepalived 配置

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    cat /etc/keepalived/keepalived.conf
    global_defs {
    router_id NodeB
    }
    vrrp_instance VI_1 {
    state BACKUP #设置为主服务器
    interface eth0 #监测网络接口
    virtual_router_id 51 #主、备必须一样
    priority 90 #(主、备机取不同的优先级,主机值较大,备份机值较小,值越大优先级越高)
    advert_int 1 #VRRP Multicast广播周期秒数
    authentication {
    auth_type PASS #VRRP认证方式,主备必须一致
    auth_pass 1111 #(密码)

    virtual_ipaddress {
    192.168.1.200/24 #VRRP HA虚拟地址
    }
    }

分别启动主节点和备用节点的 keepalived

1
service keepalived start

验证

  • 1、分别查看 keepalivedNginx 是否启动

Nginx:

1
2
[root@localhost ~]# service nginx status
nginx (pid 1185) 正在运行...

或:

1
2
3
4
5
[root@localhost ~]# ps aux | grep nginx
root 1185 0.0 0.0 8596 740 ? Ss Feb06 0:00 nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf
nginx 1188 0.0 0.1 8600 1584 ? S Feb06 0:00 nginx: worker process
root 2115 0.0 0.0 5724 548 pts/0 S+ Feb06 0:00 tail -f /var/log/nginx/access.log
root 2635 0.0 0.0 6052 780 pts/2 S+ 00:05 0:00 grep nginx

keepalived:

1
2
[root@localhost ~]# service keepalived status
keepalived (pid 1925) 正在运行...

或:

1
2
3
4
5
[root@localhost ~]# ps aux | grep keepalived
root 1925 0.0 0.1 17200 1092 ? Ss Feb06 0:00 /usr/sbin/keepalived -D
root 1927 0.0 0.2 17256 2584 ? S Feb06 0:00 /usr/sbin/keepalived -D
root 1928 0.0 0.1 17256 1896 ? S Feb06 0:01 /usr/sbin/keepalived -D
root 3553 0.0 0.0 6052 780 pts/2 S+ 00:09 0:00 grep keepalived

为了确保稳定性,keepalived 守护程序分为3个不同的进程。父进程,负责监控两个子进程,两个子进程,一个负责VRRP框架,另一个负责健康检查。

开启 Masterkeepalived ,Master 会广播ARP消息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[root@localhost ~]# tail -f /var/log/messages

Feb 7 04:50:06 localhost Keepalived[9864]: Starting Keepalived v1.2.13 (03/19,2015)
Feb 7 04:50:06 localhost Keepalived[9865]: Starting Healthcheck child process, pid=9867
Feb 7 04:50:06 localhost Keepalived[9865]: Starting VRRP child process, pid=9868
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Netlink reflector reports IP 192.168.1.201 added
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Netlink reflector reports IP fe80::a00:27ff:fe89:8c8 added
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Registering Kernel netlink reflector
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Registering Kernel netlink command channel
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Registering gratuitous ARP shared channel
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Netlink reflector reports IP 192.168.1.201 added
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Opening file '/etc/keepalived/keepalived.conf'.
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Configuration is using : 35102 Bytes
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Netlink reflector reports IP fe80::a00:27ff:fe89:8c8 added
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Registering Kernel netlink reflector
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Registering Kernel netlink command channel
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: Using LinkWatch kernel netlink reflector...
Feb 7 04:50:06 localhost Keepalived_vrrp[9868]: VRRP sockpool: [ifindex(2), proto(112), unicast(0), fd(10,11)]
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Opening file '/etc/keepalived/keepalived.conf'.
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Configuration is using : 5225 Bytes
Feb 7 04:50:06 localhost Keepalived_healthcheckers[9867]: Using LinkWatch kernel netlink reflector...
Feb 7 04:50:07 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Transition to MASTER STATE
Feb 7 04:50:08 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Entering MASTER STATE
Feb 7 04:50:08 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) setting protocol VIPs.
Feb 7 04:50:08 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Sending gratuitous ARPs on eth0 for 192.168.1.200
Feb 7 04:50:08 localhost avahi-daemon[1013]: Registering new address record for 192.168.1.200 on eth0.IPv4.
Feb 7 04:50:08 localhost Keepalived_healthcheckers[9867]: Netlink reflector reports IP 192.168.1.200 added
Feb 7 04:50:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Sending gratuitous ARPs on eth0 for 192.168.1.200

同样,开启 BackUpkeepalived 时的日志信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
[root@localhost ~]# tail -f /var/log/messages

Feb 7 04:40:45 localhost Keepalived[3771]: Starting Keepalived v1.2.13 (03/19,2015)
Feb 7 04:40:45 localhost Keepalived[3772]: Starting Healthcheck child process, pid=3774
Feb 7 04:40:45 localhost Keepalived[3772]: Starting VRRP child process, pid=3775
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Netlink reflector reports IP 192.168.1.202 added
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Netlink reflector reports IP fe80::a00:27ff:fec9:2d9 added
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Registering Kernel netlink reflector
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Registering Kernel netlink command channel
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Registering gratuitous ARP shared channel
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Opening file '/etc/keepalived/keepalived.conf'.
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Netlink reflector reports IP 192.168.1.202 added
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Configuration is using : 35100 Bytes
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: Using LinkWatch kernel netlink reflector...
Feb 7 04:40:45 localhost Keepalived_vrrp[3775]: VRRP sockpool: [ifindex(2), proto(112), unicast(0), fd(10,11)]
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Netlink reflector reports IP fe80::a00:27ff:fec9:2d9 added
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Registering Kernel netlink reflector
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Registering Kernel netlink command channel
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Opening file '/etc/keepalived/keepalived.conf'.
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Configuration is using : 5223 Bytes
Feb 7 04:40:45 localhost Keepalived_healthcheckers[3774]: Using LinkWatch kernel netlink reflector...
Feb 7 04:40:46 localhost Keepalived_vrrp[3775]: VRRP_Instance(VI_1) Transition to MASTER STATE
Feb 7 04:40:46 localhost Keepalived_vrrp[3775]: VRRP_Instance(VI_1) Received higher prio advert
Feb 7 04:40:46 localhost Keepalived_vrrp[3775]: VRRP_Instance(VI_1) Entering BACKUP STATE

在日志的最后三行,是 keepalived 选举 Master状态 的记录
在启动 BackUp 节点的 keepalived 时,Master 的日志中会新增如下内容:

1
2
3
4
5
6
Feb  7 04:50:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Sending gratuitous ARPs on eth0 for 192.168.1.200
Feb 7 04:51:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Received lower prio advert, forcing new election
Feb 7 04:51:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Sending gratuitous ARPs on eth0 for 192.168.1.200
Feb 7 04:51:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Received lower prio advert, forcing new election
Feb 7 04:51:13 localhost Keepalived_vrrp[9868]: VRRP_Instance(VI_1) Sending gratuitous ARPs on eth0 for 192.168.1.200
Feb 7 04:54:26 localhost dhclient[9723]: parse_option_buffer: malformed option dhcp.x-display-manager (code 49): option length exceeds option buffer length.

  • 2、通过浏览器(192.168.1.100) 访问 http://192.168.1.200

我们通过查看 Node_1 节点的 访问日志

1
2
[root@localhost ~]# tail -f /var/log/nginx/access.log
192.168.1.201 - - [06/Feb/2017:22:51:27 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"

发现 访问路径为 : 浏览器(192.168.1.100) –> Master(192.168.1.201) –> Node_1(192.168.1.210)

这时我们 关闭 Master(192.168.1.201) 的网卡,

1
service network stop

之后,再次通过 浏览器(192.168.1.100) 访问 http://192.168.1.200,再次查看 Node_1 节点的 访问日志

1
2
3
[root@localhost ~]# tail -f /var/log/nginx/access.log
192.168.1.201 - - [06/Feb/2017:22:51:27 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"
192.168.1.202 - - [06/Feb/2017:23:02:49 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"

我们发现 访问路径已经切换成: 浏览器(192.168.1.100) –> BackUp(192.168.1.202) –> Node_1(192.168.1.210)

再次开启,Master(192.168.1.201) 的网卡,

1
service network restart

使用浏览器(192.168.1.100) 访问 http://192.168.1.200Node_1 节点的 访问日志

1
2
3
4
[root@localhost ~]# tail -f /var/log/nginx/access.log
192.168.1.201 - - [06/Feb/2017:23:02:27 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"
192.168.1.202 - - [06/Feb/2017:23:02:49 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"
192.168.1.201 - - [06/Feb/2017:23:03:46 +0800] "GET / HTTP/1.1" 200 14 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_12_2) AppleWebKit/602.3.12 (KHTML, like Gecko) Version/10.0.2 Safari/602.3.12" "-"

访问路径有变回到, 浏览器(192.168.1.100) –> BackUp(192.168.1.202) –> Node_1(192.168.1.210)

至此,使用 keepalived 实现一个双机高可用的基本架构就算搭建完成。
